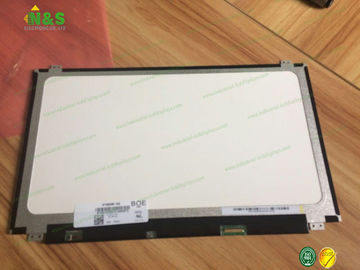

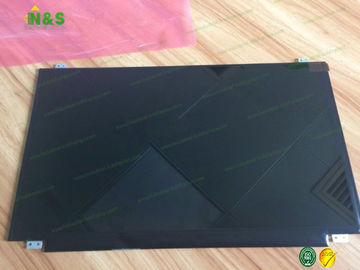

NT156WHM-N42 BOE Surface Antiglare 15.6 inch, 1366×768 tft lcd module Outline 359.5×223.8×3.2 mm
NT156WHM-N42 Basic Information
| Panel Model |
NT156WHM-N42 |
| Panel Brand |
BOE |
| Descrition |
a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
NT156WHM-N42 Mechanical Features
| Dot Resolution |
1366(RGB)×768 (WXGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
100 PPI |
| Aspect Ratio |
16:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.084×0.252 mm (H×V) |
| Pixel Pitch |
0.252×0.252 mm (H×V) |
| Weight |
370g (Max.) |
| Surface |
Antiglare |
| Active Area |
344.232×193.536 mm (H×V) |
| Outline Dimension |
359.5×223.8 mm (H×V) |
| Outline Depth |
3.2 (Max.) mm |
| Shape Style |
Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets |
Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
NT156WHM-N42 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
220 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Color Gamut |
45% NTSC (CIE1931) |
| Response Time |
12 (Typ.)(Tr+Td) |
| Viewing Angle |
45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable |
N |
