Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

Сертификация
Китай N&S ELECTRONIC CO., LIMITED Сертификаты
Китай N&S ELECTRONIC CO., LIMITED Сертификаты
Просмотрения клиента
Мы приходили назад вполне превосходных памятей, N&S очень хорошая организация. Действительно экспертный для LCDs.

—— ANDY

Мы хотел были бы похвалить обслуживание мы получили от этой компании которая бездефектно организовала нашу линию питания панели LCD.

—— M.H. Тэтчер

Если я планирую другой заказ, то панели LCD я не смущусь связаться вы снова.

—— Алехандро

Оставьте нам сообщение

Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm
Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

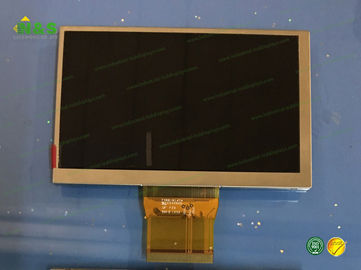

Большие изображения :  Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

Подробная информация о продукте:
Место происхождения: КОРЕЯ
Фирменное наименование: CPT
Сертификация: ISO9001
Номер модели: КЛАА050ЛА0АКВ
Оплата и доставка Условия:
Количество мин заказа: 1
Упаковывая детали: Антистатический пакет, мешок пузыря, коробка пены и коробка коробки.
Время доставки: 1-3 рабочих дней
Условия оплаты: Западное соединение, Т/Т, МонейГрам, Т/Т
Поставка способности: 500pcs/day

Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

описание
Тип панели: -Si TFT-LCD Размер панели: 5,0 дюйма
Резолюция: 800×480 поверхность: Трудное покрытие
Коэффициент контрастности: 500:1 (тип.) Частота: 60 Гц
Высокий свет:

industrial lcd screen

,

industrial lcd panel

Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm

CLAA050LA0ACW Basic Information

Panel Model CLAA050LA0ACW
Panel Brand CPT
Descrition a-Si TFT-LCD ,5.0 inch, 800×480
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.9G (28.4 m/s²)


CLAA050LA0ACW Mechanical Features

Dot Resolution 800(RGB)×480 (WVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 188 PPI
Aspect Ratio 15:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.045×0.135 mm (H×V)
Pixel Pitch 0.135×0.135 mm (H×V)
Weight 65g (Max.)
Surface Hard coating
Active Area 108×64.8 mm (H×V)
Bezel Area 110.6×67.4 mm (H×V)
Outline Dimension 118.5×77.5 mm (H×V)
Outline Depth 2.8±0.3 mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without



CLAA050LA0ACW Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 500 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 16.2M (6-bit + FRC)
Color Gamut 50% NTSC (CIE1931)
Response Time 20 (Typ.)(Tr+Td)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable N


Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH550WF2-SH01 LG Display 5.5" 1080×1920
M280DGJ-Q02 Innolux 28.0" 3840×2160
LC490EGY-SHM1 LG Display 49" 3840×2160
LC390TU1A PANDA 39" 1366×768
CLAN043LL31 1DN CPT 4.3" 480×800
CLAN050LL31 1XG CPT 5.0" 480×800
CLAN050LG41 1XB CPT 5.0" 540×960
H501VAN01.0 AUO 5.0" 480×800
H546AAN01.1 AUO 5.5" 540×960
HSD060FHW1-D00 HannStar 6.0" 720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk
