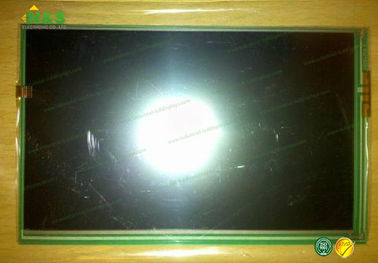

New and original CLAA070LC0ECT TFT LCD Module CPT 7.0 inch 800×480 Normally White Surface Antiglare, Hard coating (3H)
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
CLAA070LC0ECT Basic Information
| Panel Model |
CLAA070LC0ECT |
| Panel Brand |
CPT |
| Descrition |
a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-30 ~ 85 °C |
| Storage Temperature |
-40 ~ 95 °C |
| Vibration Resistance |
2.9G (28.4 m/s²) |
CLAA070LC0ECT Mechanical Features
| Dot Resolution |
800(RGB)×480 (WVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
133 PPI |
| Aspect Ratio |
15:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0635×0.1905 mm (H×V) |
| Pixel Pitch |
0.1905×0.1905 mm (H×V) |
| Weight |
145g (Typ.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
152.4×91.44 mm (H×V) |
| Outline Dimension |
165×104 mm (H×V) |
| Outline Depth |
5.0/6.3 (Typ./Max.) mm |
| Holes & Brackets |
Without |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Embeded (4-wire Resistive) |
CLAA070LC0ECT Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
400 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
20 (Max.)(Tr+Td) |
| Viewing Angle |
70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable |
N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| CLAF024G421 AX |
CPT |
2.4" |
240×320 |
| CLAF022GJ01 AX |
CPT |
2.2" |
240×320 |
| CLAF050JD01 00XC |
CPT |
5.0" |
480×272 |
| CLAF050JD01CX |
CPT |
5.0" |
480×272 |
| TM190MFS01 |
Tianma |
19.0" |
1440×900 |
| CLAF024G201C0 |
CPT |
2.4" |
480×234 |
| CLAF022GH01A0 |
CPT |
2.2" |
240×320 |
| CLAF020GC01A0 |
CPT |
2.0" |
240×320 |
| CLAF020FG01 00XA |
CPT |
2.0" |
176×220 |
| CLAF020FE01A0 |
CPT |
2.0" |
176×220 |
| CLAF018DM01 00XA |
CPT |
1.8" |
128×160 |
